Y2系列三相异步电动机
产品说明:

Y2系列三相异步电动机是采用新技术而开发的新系列,是Y系列电动机的升级换代产品.
Y2系列电机系全封闭、外扇冷式、鼠笼型结构。具有设计新颖、造型美观、噪音低、效率高、转矩高、起动性能好、结构紧凑、使用维护方便等特点。整机采用F级绝缘,且按国际惯例的绝缘结构评定方法设计,从而大大提高了整机安全可靠性。达到了国外同类产品先进水平。外壳防护等级IP54,冷却方式IC411,连续工作(SI),额定电压380V,额定频率50Hz,功率3kw及以下为Y接法,4KW及以上规格为△接法。

Adopting new techniques, Y2 series three-phase asynchronous motors are the renewal and upgrading products of Y series.
Y2 series motors are defined as totally enclosed fan cooling squirrel cage type and noted for their novel design,beautiful modelling,low noise,high efficiency,large torque,excellent starting performance, compact strcucture, easy maintenance and etc.
This series motor adopts F class insulation,and is designed with assessing method for insulation system according to international practice, which greatly enhances motor’s safety and reliability. Therefore, Y2 series motors have reached an international advanced level of such kind of products. IP54 degree of covering protection, IC411 cooling method,continuous duty(sl), 380V rated voltage and 50Hz rated frequency, For motor of 3KW and below,the stator windings are connected in Y ,while for 4KW and above are in △.

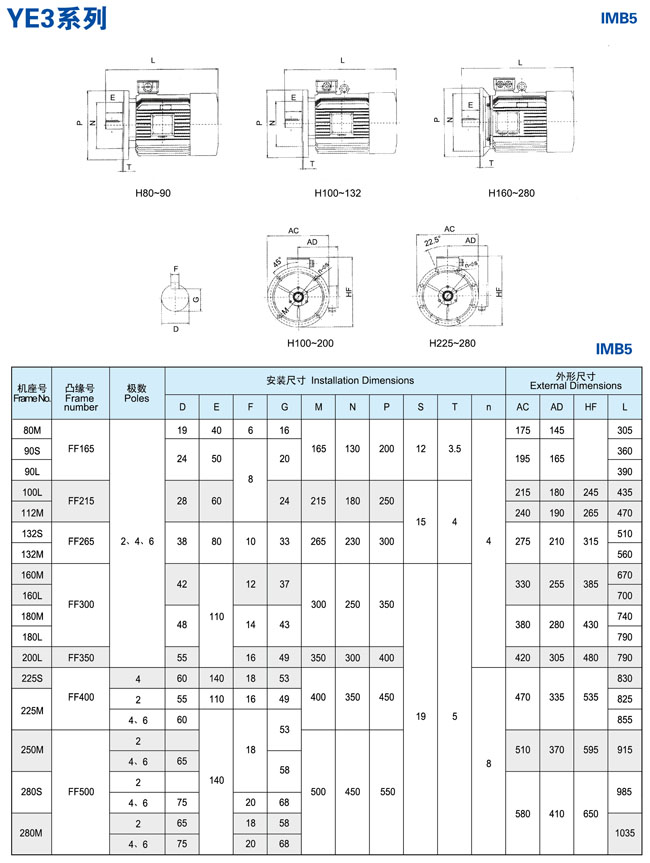

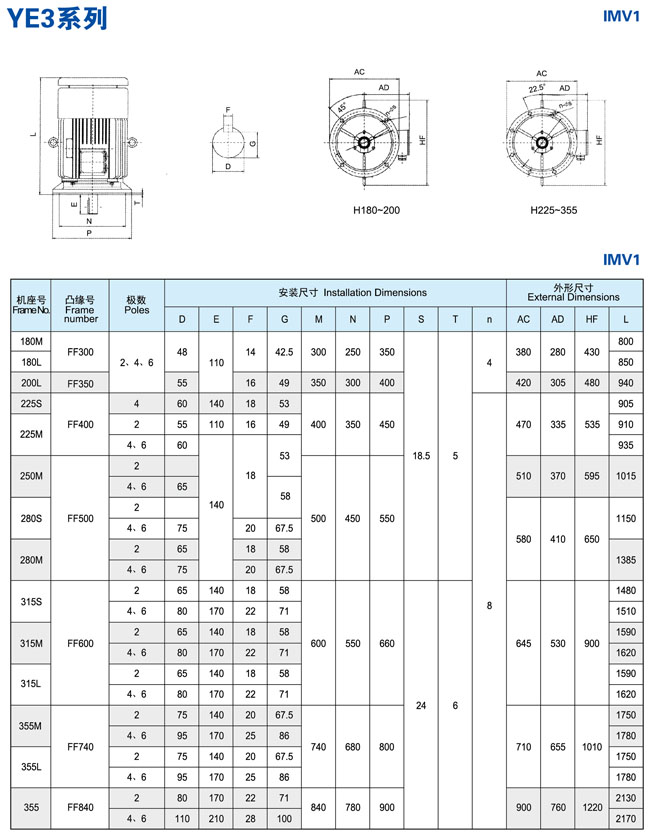

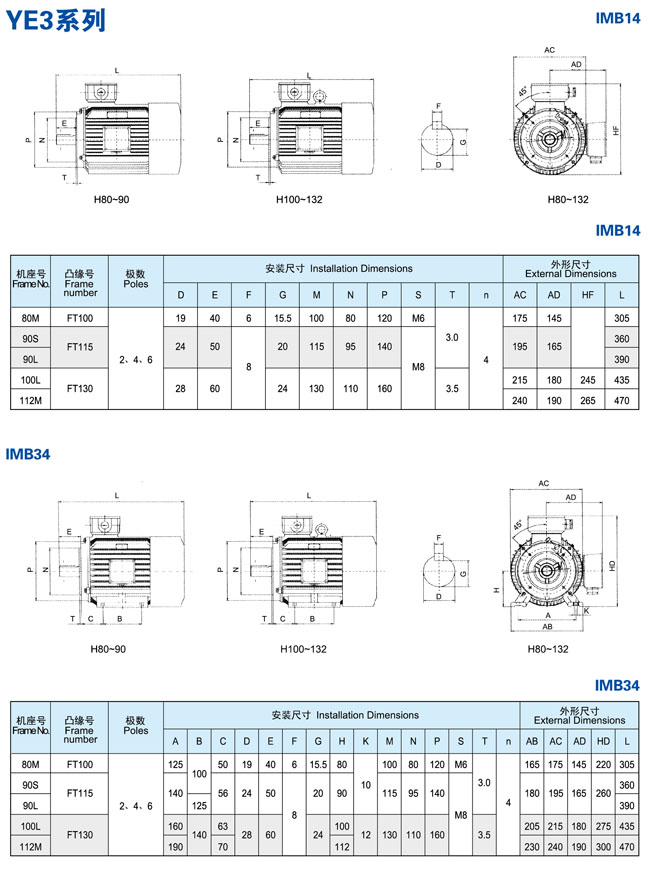

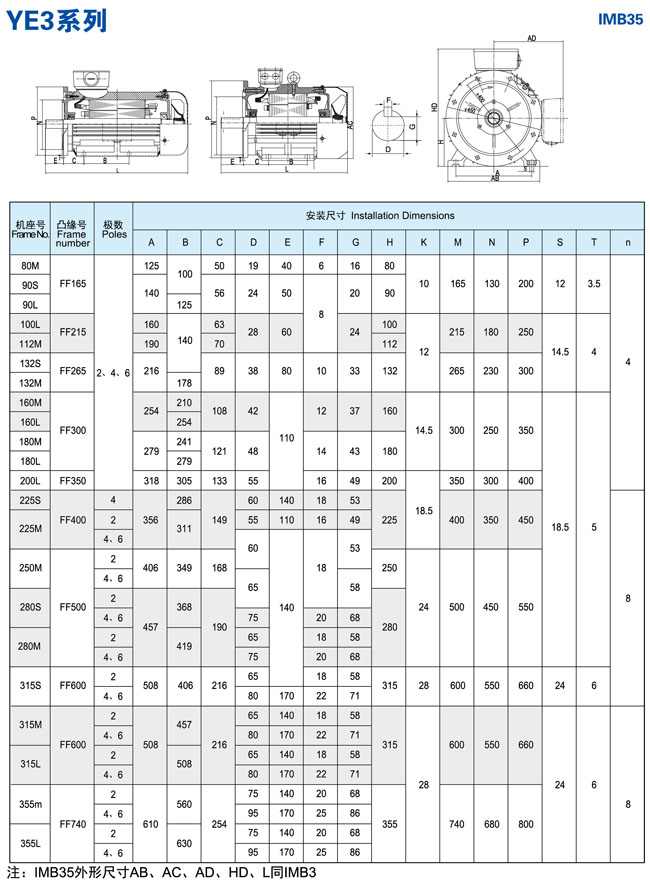

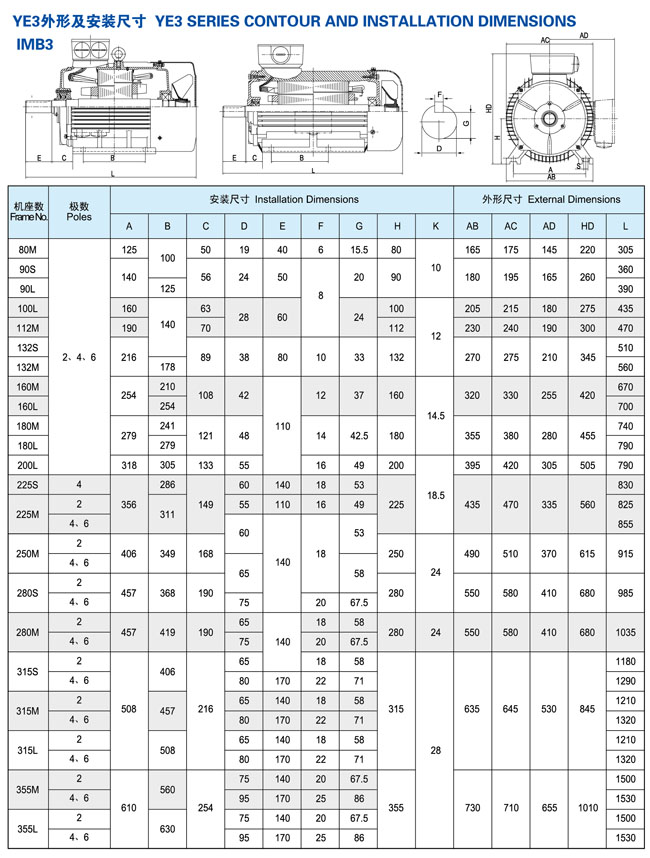

安装结构型式 INSTALLATION STRUCTURE PATTERN
电动机的安装方式符合IEC34-7的规定,有四种基本结构型式,如图所示:
The mounting arrangements of the motors comply with IEC34-7 recommendation. There are four
basic arrangements shown as the following tables and figures.
